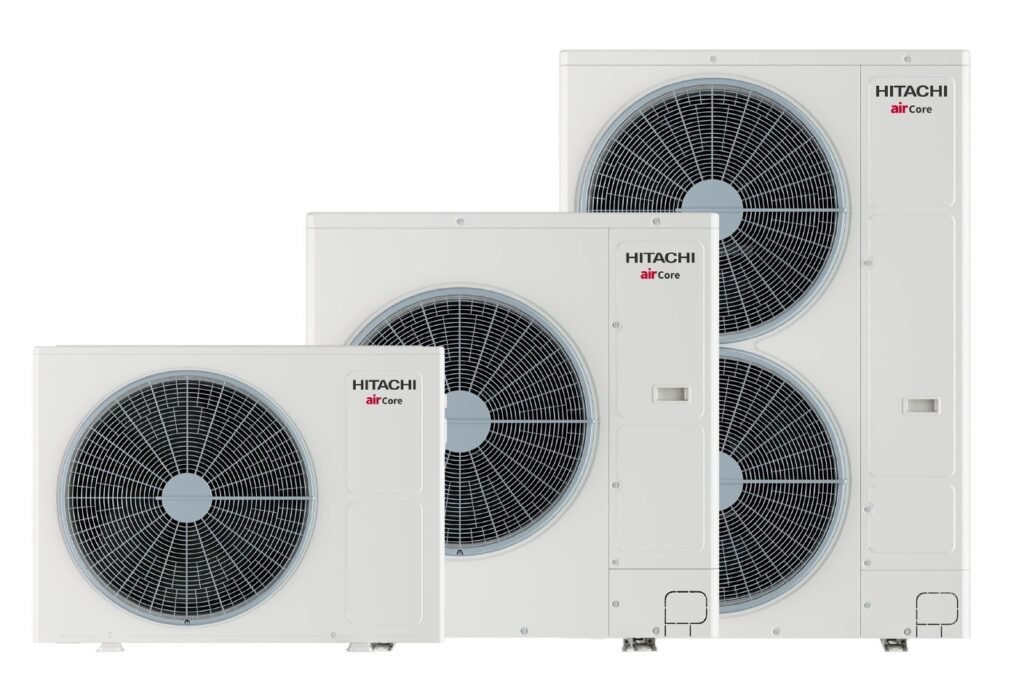

Hitachi airCore 700 Ducted System

Introducing airCore700 Ducted System: Hitachi’s top-tier commercial split system range. It provides superior cooling and heating, with a wide capacity range and efficient operation in diverse temperatures. With R32 refrigerant, it offers lower global warming potential than R410A units, ensuring eco-friendly performance without compromising comfort.

Fill out the contact us form for a no obligation FREE quote.

6 Year Warranty

Introducing Hitachis’ Ducted Heat Pump Air-Conditioning System

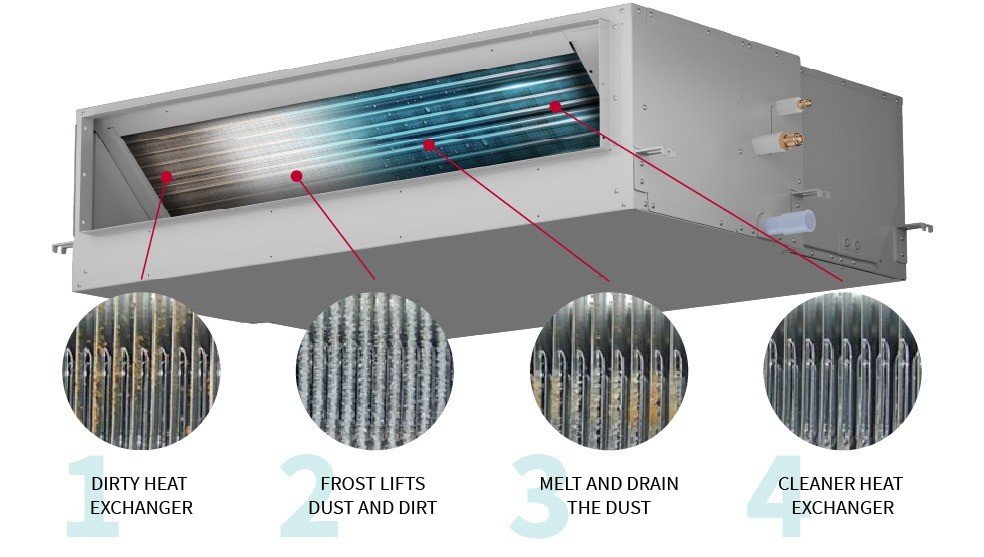

Frostwash Technology

The airCore 700 indoor ducted unit comes with FrostWash, a unique cleaning feature. FrostWash freezes dirt and dust in the indoor unit heat exchanger, which is then drained away with the condensate during defrosting. This process cleans the heat exchanger, ensuring long-term performance by preserving airflow. FrostWash can be activated manually or set to run automatically at scheduled intervals for hassle-free maintenance.

Intelligent Power Management for Energy Efficiency

The airCore 700 offers mid and high static pressure ducted systems, designed to accommodate various layouts and applications. The mid-ESP version supports 35-215Pa ESP, while the high-ESP models can handle up to 35-310Pa ESP. The high-ESP ducted indoor units is designed with detachable components, allowing effortless removal and reassembly of the fan cover from the heat exchanger compartment using a simple ‘one-click’ mechanism. This modular design is suited for installations in confined spaces like rooftop attics and narrow areas.

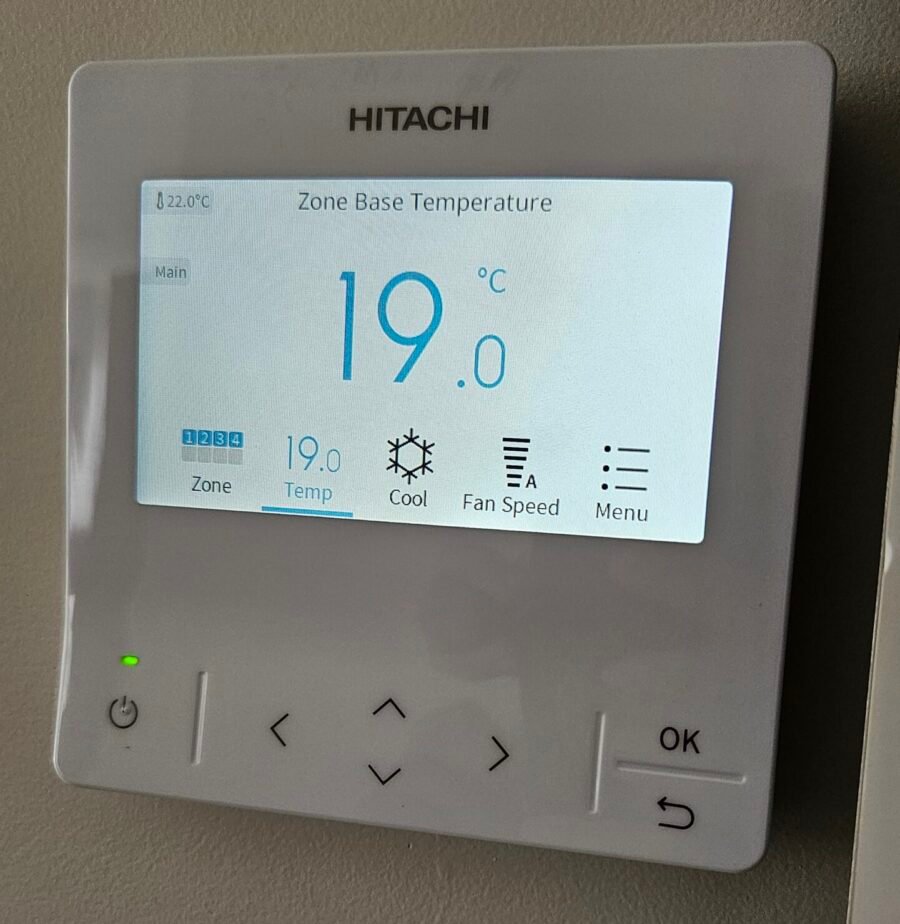

Hitachi Aircore 700 Controller display

Advanced Controller

  • 7 Day Operating Scheduling System. – The Operation Schedule function acts like a 7-day timer for your unit. It lets you automatically turn the unit on or off at specific times you set. You can also adjust the temperature as needed. You can create up to 5 schedules for each day, including a special schedule for holidays. Plus, you can set these schedules up to six days ahead of time.
  • Power Consumption Display – The power consumption feature shows how much power the outdoor unit compressor is using. It displays this information in both graph and list formats, showing data for 1 day (every 2 hours), 1 week (7 days), and 1 year (12 months).
  • Filter Clean Reminder – When it’s time to clean or replace your indoor unit’s filter, the controller will notify you with a reminder.
  • Temperature Set Point Limits – Use the controller to set limits on the cooling and heating temperature settings to reduce energy waste.

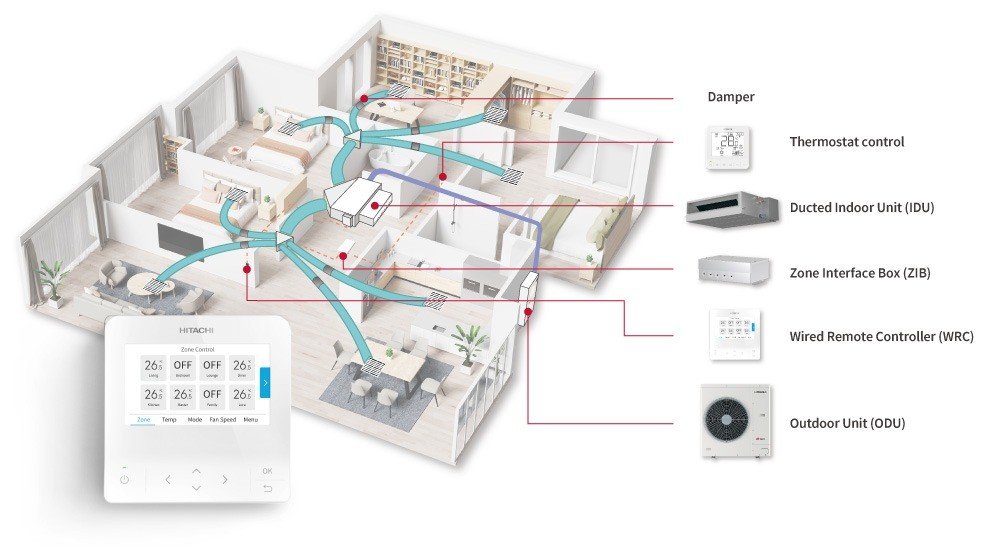

Premium zoning systems featuring modulating damper control for ultimate comfort and efficiency

The Premium Zoning Kit pairs with airCore700 ducted systems, catering to both medium-static (small homes) and high-static (large homes) indoor units.

Key Features:

  • Allows up to 8 zones, each with individual room temperature control through thermostats.
  • Optimises airflow to each zone with modulating damper control based on thermostat settings.

Zoning Control:

  • The PC-ARFG2-Z controller centrally manages all zones, displaying set temperatures for each.
  • Monitor and adjust individual zones for ON/OFF, set temperature, and fan speed.
  • Set weekly schedules for tailored operation times and temperatures in each zone.
Ducted system modular damper control image

Other Features

  • airCore 700 has high energy efficiency. EER up to 4.39; COP up to 4.69.
  • R32 Refrigerant
  • airCore 700 greatly reduces outdoor unit noise and includes a night quiet operation feature for all indoor unit types. The sound power level has decreased to 49dB (MSP Model 5.0kW~7.2kW).
